TR8020

TR8020
TR8020 - view 1TR8020 - view 2TR8020 - view 3TR8020 - view 4TR8020 - view 5TR8020 - view 6TR8020 - view 7

Trak Racer’s TR80 has infinite adjustment and the most expandable and rigid components in the business. The strength of the TR80 will ensure no flex is experienced and no loss of force feedback, even with the strongest servos on the market. If you need a bit more strength checkout the Premium TR160 Sim Rig.

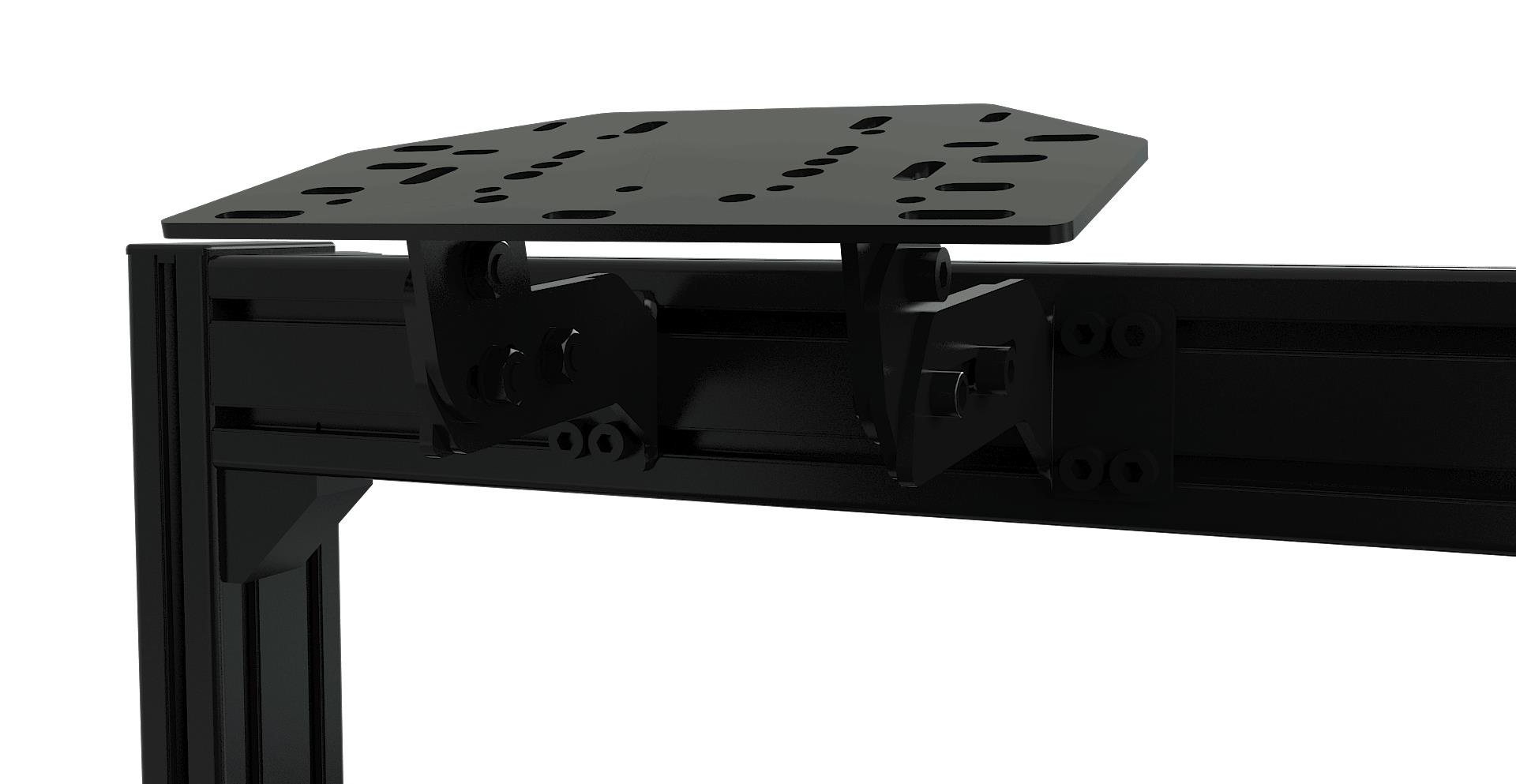

Wheel Deck with Full Slide and Angle Adjustment
The more Traditional and Fully Adjustable Wheel Deck Mount is fully adjustable (back/forth and up/down angle) and is made out of 80mm x 40mm Premium Black Aluminium Profile and thick Laser Cut Carbon Steel.

Steel Side Seat Brackets
Simple mounting with a heap of positions and suitable for most side mount fibreglass seats.

Seat Slider Rails
With dual-locking mechanism and adjustment bar.

Adjustable Two-way Pedal Mount
Mount at Low or High
The TR80 Pedal Mount is fully adjustable to sit in a lot position or high and is pre-drilled for all major brand pedals. The clever design mounts allows the pedals to slide back and forth / up and down.

Adjustable Throttle Mount
Pre-drilled for all the major brands, the included throttle mount mounts on left or right.

Fibreglass GT Style Race Seat
Trak Racer have developed a racing simulator seat with extra padding to the same fit and specifications as a real GT style race seat.

Level your Rig and Protect your Floors
The included rubber levelling and hard wood floor protecting rubber feet are adjustable to provide a stable floor surface

Perfectly Proportioned Chassis

The TR80 Chassis has been designed to suit all pilot heights and most seats and peripherals on the market. Ready to be customised and expanded by you.

BLACK ANODIZED
80mm x 40mm
PRO ALUMINIUM CHASSIS

Our Premium Fasteners along with our high-quality aluminium are able to withstand vibrations and also high levels of longitudinal and transverse forces. After completing exhaustive hours of testing with Direct Drive wheels including MIGE/OSW up to 30Nm and SimExperience AccuForce we can confidentially guarantee that the TR80 is able to withstand greater forces than 30Nm.

Yoke Deck with Full Slide and Angle Adjustment
The more Traditional and Fully Adjustable Yoke Deck Mount is fully adjustable (back/forth and up/down angle) and is made out of thick Laser Cut Carbon Steel. This bracket is compatible with the following Yokes:

Honeycombe Alpha Yoke
Virtual Fly Yoko
Saitek Yoke
Logitech Yoke
CH Eclypse Yoke
Saitek Joysticks & HOTAS
Thrustmaster Joysticks & HOTAS
With the added support plate, the mount can accommodate a full flight console like the

Elite ProPanel II / III
Precision Flight Controls Cirrus II
Virtual Fly Solo Airliner RS

Motor Racing Fans can use the following;
Fanatec including CSW V1, V2, V2.5 (without mounting adapter), CSL Elite, Forza Motorsport CSR, Porsche 911 GT2/V2
Thrustmaster including T180/T100/T150/TMX, T300/TX, T500, TS-PC/TS-XW/T-GT
Logitech including G25/27/29/920
Direct Drive including Simucube (requires brackets), SimExperience AccuForce V2, Fanatec DD1 DD2
Various MIGE Mounts and more
SimuCube 2 Sport, Pro, Ultimate (requires brackets)

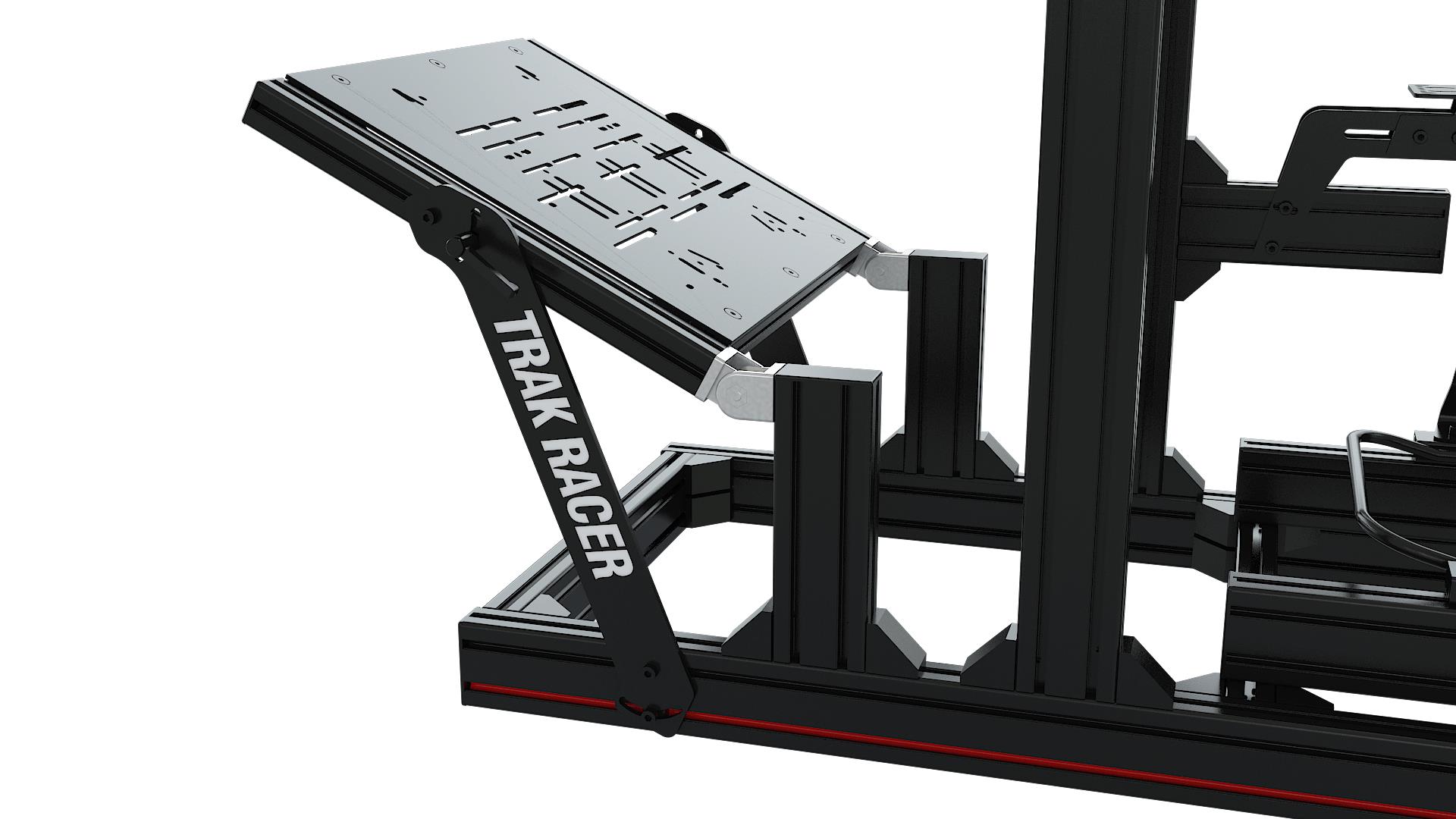

Adjustable Two-way Pedal Mount
The TR80 Pedal Mount can be mounted to just above or up high above the 80mm high aluminium chassis and pre-drilled for all major brand pedals. The clever design mounts outside the chassis for low-level height or and slides up a vertical profile to expand positions.

The pedal baseplate is made out of thick carbon steel and has pre-drilled holes for all major brand pedals (see list below) and slots for left/right adjustment with Heusinkveld pedals and others. The pedal plate can be angle adjusted with the locking lever and moved forwards and backwards. This bracket is compatible with the following pedals (and more):

Versatile Rudder pedal Mount to suit all available rudder pedals.

Driving / Racing Solutions
Fanatec including CSL Elite Pedals, ClubSport V1/V2/V3
Thrustmaster including 2-pedals (all), T3PA, GT Ed, T3PGT, T3PA PRO add-on and T500
Heusinkveld including Ultimate, Sprint and Pro
Quaife Throttle Pedal and Brake
HPP PRX 3P
Logitech G Series

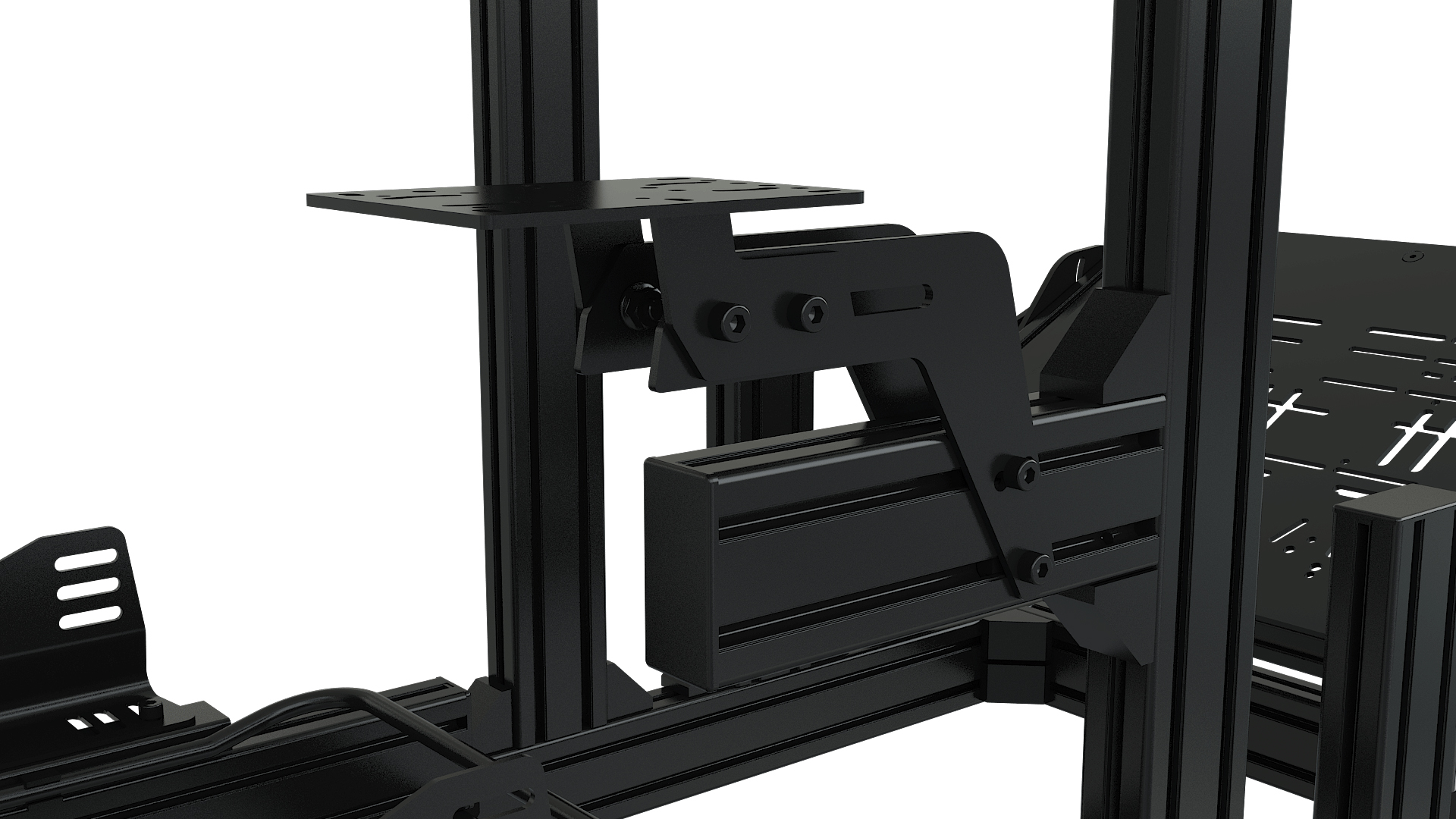

Fully Adjustable and Pre-Drilled Two-way Throttle
This rigid gear shift mount sits firmly on the TR80’s 80mm x 40mm premium aluminium profile using 2 slots to allow you to slide up and down to your perfect position and angle adjust. The included bracket has it’s own sliding function for a more precise position as well as 3 angle adjustment. Shifter and handbrake bracket details

This bracket is compatible with the following throttles (and more) :

Virtual Fly V3rnio / TQ3 & TQ6 Throttles
Elite USB SEL/MEL Throttle Quadrants
HOTAS Units
Saitek
Thustmaster
CH Products

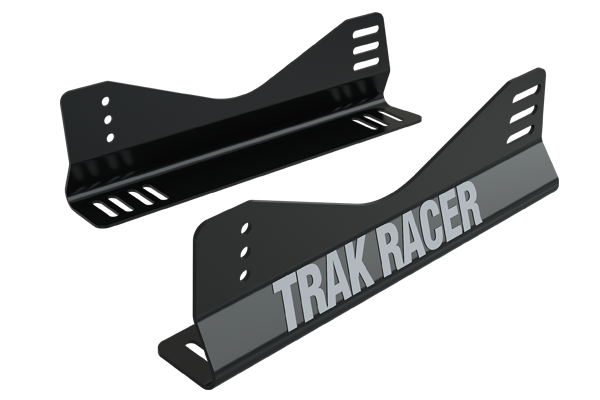

Adjustable 9-Stage Seat Brackets
The TR80 Cockpit Frame is designed for motorsport professionals and serious sim racers so quality when selecting materials and designing components was considered a top priority. While we do include a seat sliders, it can flex with high braking forces. Therefore, the included seat brackets come with a lot of adjustment points so you can make the decision not to use the included seat slider however, if the seat will be regularly adjusted we strongly recommend the use of the seat slider. The adjustable mounting points will enable you to mount a large variety of different GT-style seats with side mounting holes.

Premium Sliding Seat Runner Kit
Trak Racer Chassis mounted seat sliders bolt directly onto the 80mm x 40mm seat premium aluminium seat supports. Each kit includes a pair of runners for one seat, the lift up activation lever and kit of fasteners. Multi-brand applications for various seat brands, including Trak Racer, Cobra, OMP, Sparco and Corbeau seats to name a few. The measurement between each rail is approximately 32cm.

High-end steel construction
Supplied as a kit for one seat with fittings
Suitable for most base mounted type seats and seat brackets
Enables seats to be easily adjusted laterally

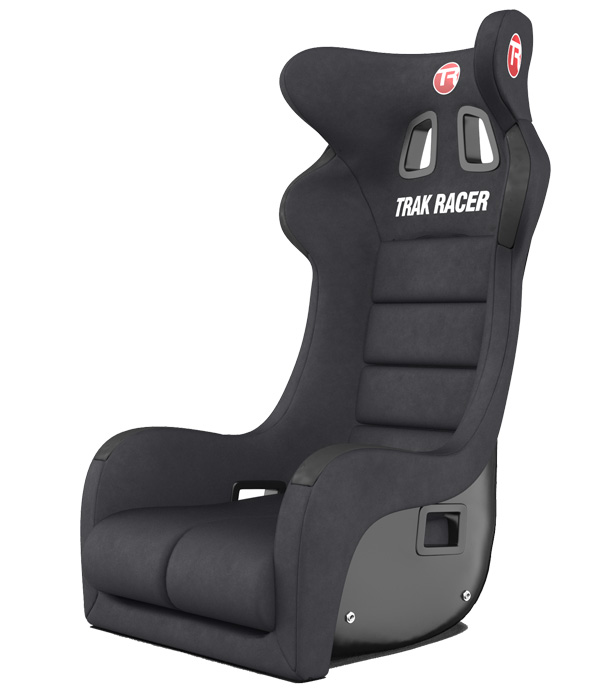

Premium Trak Racer Fibreglass Race Seat – GT Style
FOR SIM RACING ONLY

Trak Racer’s SA-03 Fibreglass Seats have been engineered for both Strength and Comfort with sizing to suit most drivers specifically in the M-XXL size range (up to 38" waist).

Premium race-ready high grade seat with hard back

Adjustable driving position seat
Ergonomically designed for extended periods of use
High density foam construction
Weight Restrictions: Up to 160kg (352 lbs)
Suitable for all racing cockpits, please take note of the mounting point locations
Material - Ultra-soft cloth
Padding - High Quality Foam
Harness System Ready
Recommended for waist/HIP size up to 38“

Contact us for any further information.


Price: £725.00 (£725.00 Excluding VAT at 20%)
