PS-3TM-1000 3dof Motion Platform System

PS-3TM-1000 3dof Motion Platform System

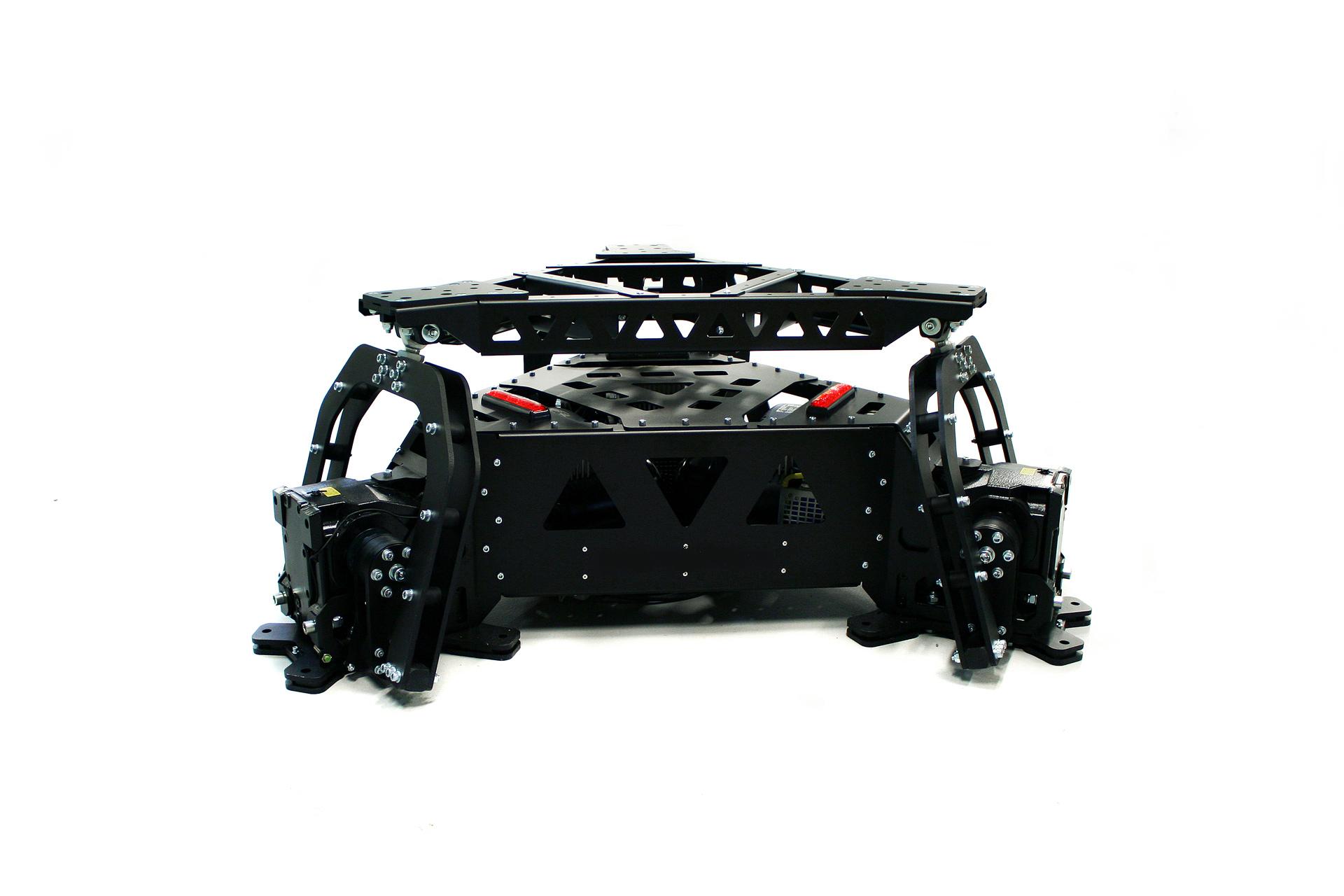

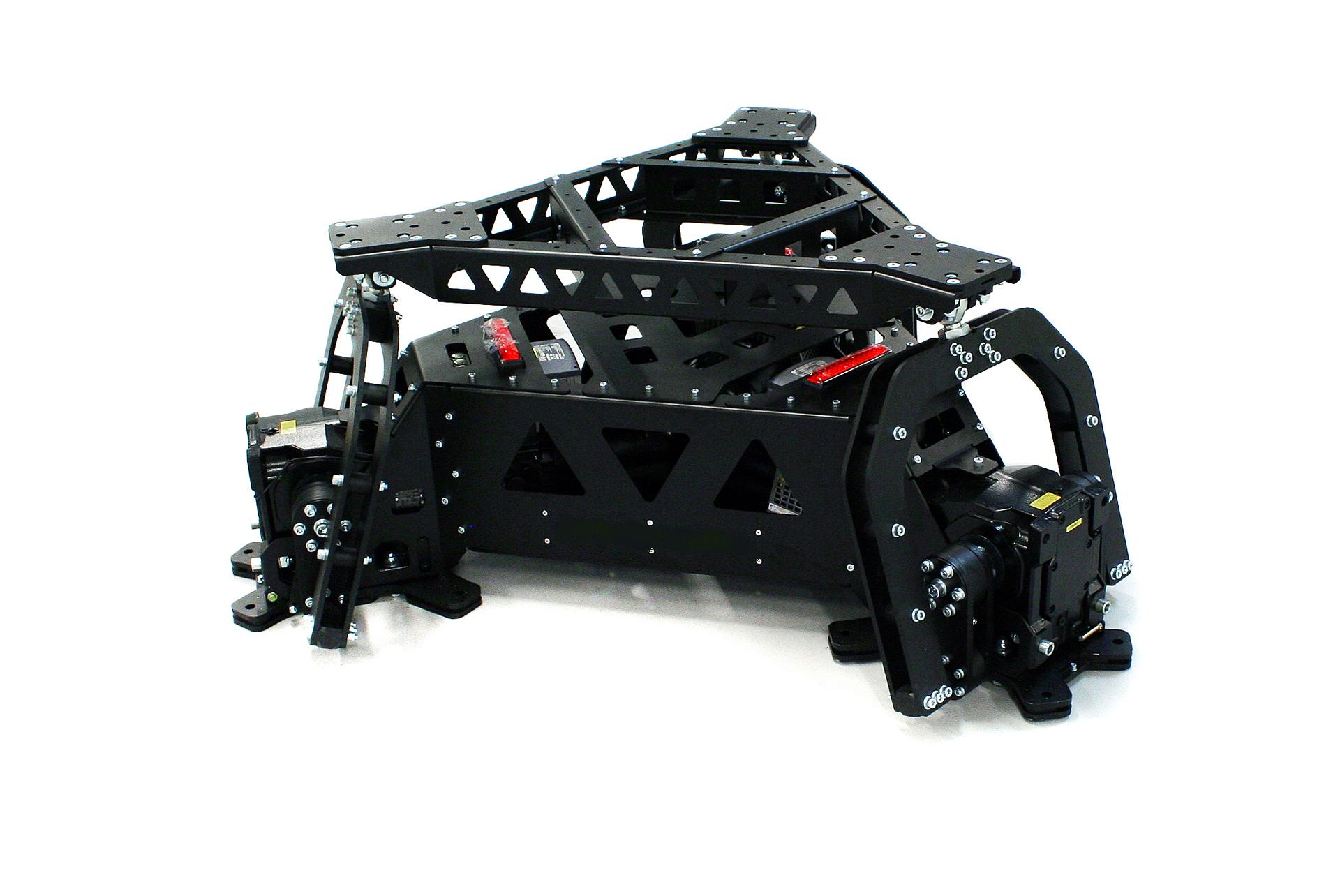

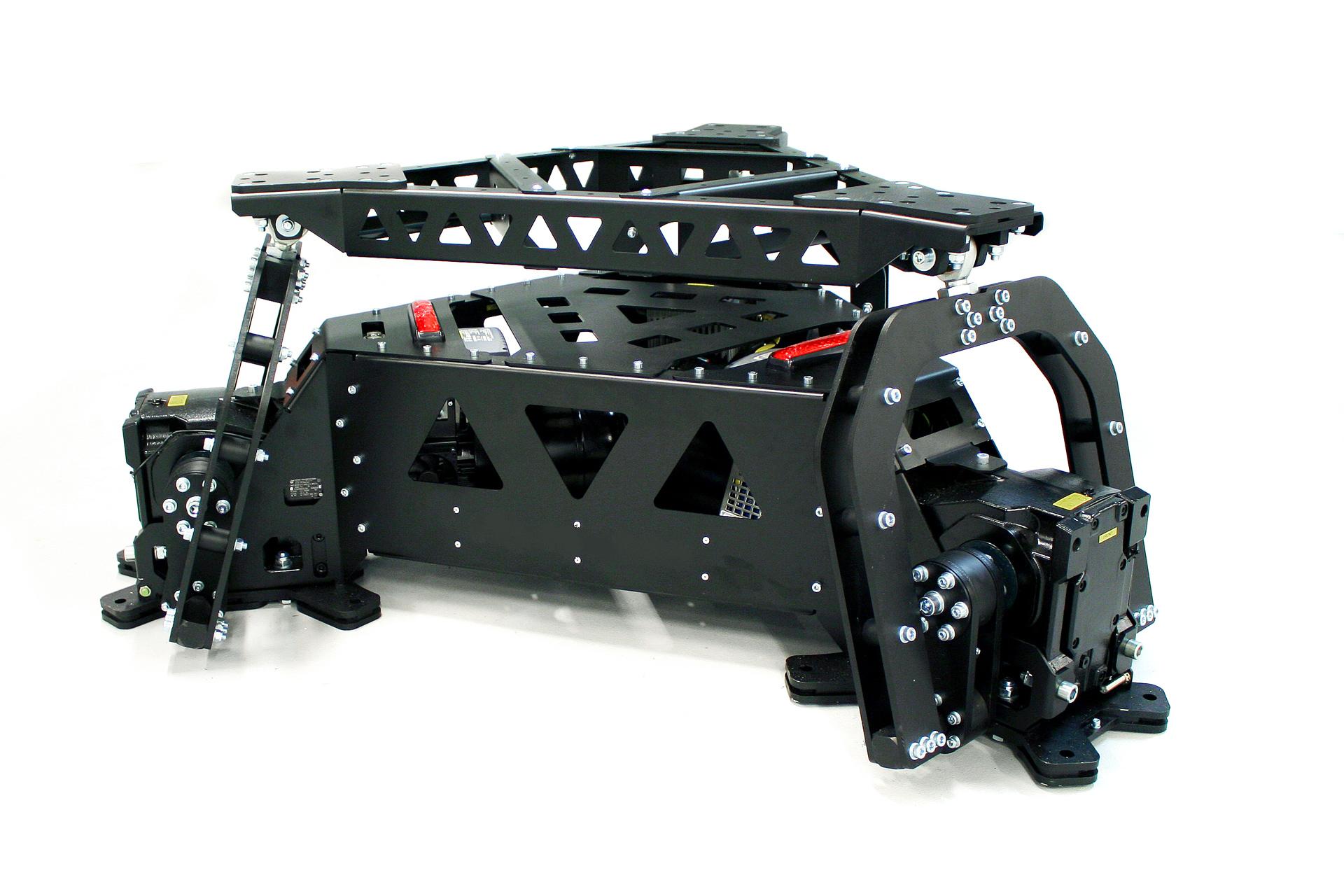

PS-3TM-1000 3dof Motion Platform System - view 1PS-3TM-1000 3dof Motion Platform System - view 2PS-3TM-1000 3dof Motion Platform System - view 3

Full electric motion system designed for full flight cabin mounting on upper frame.
General Information

Platforms are suitable for medium size flight simulators
Vehicle Training Simulators for up to 4 people
Medium size Military Training Simulators for up to 4 people
Medium size Mining Equipment Simulators
Entertainment simulators up to 5 people

* Price do not include TAX and Transportation costs.
* Final price depends on various factors such as the number of ordered units, additional options.
Architecture: 3 Degrees of Freedom
Actuation: Fully Electric
Payload: 1000kg
Power Supply Requirements: 380-480 VAC Three Phases
Power Consumption: 16 Amps
Connection type: USB 2.0, Ethernet
Dimensions: 1647mm x 1446mm
Minimum Height: 650mm
Independent Heave: 332 mm, 150mm/s, 0.3G
Independent Pitch: ±22-27°, 25°/s, 250°/s²
Independent Roll: ±21°, 25°/s, 250°/s²
Independent Yaw: Not supported
Independent Surge: Not supported
Independent Sway: Not supported



Price: £32,000.00 (£32,000.00 Excluding VAT at 20%)
